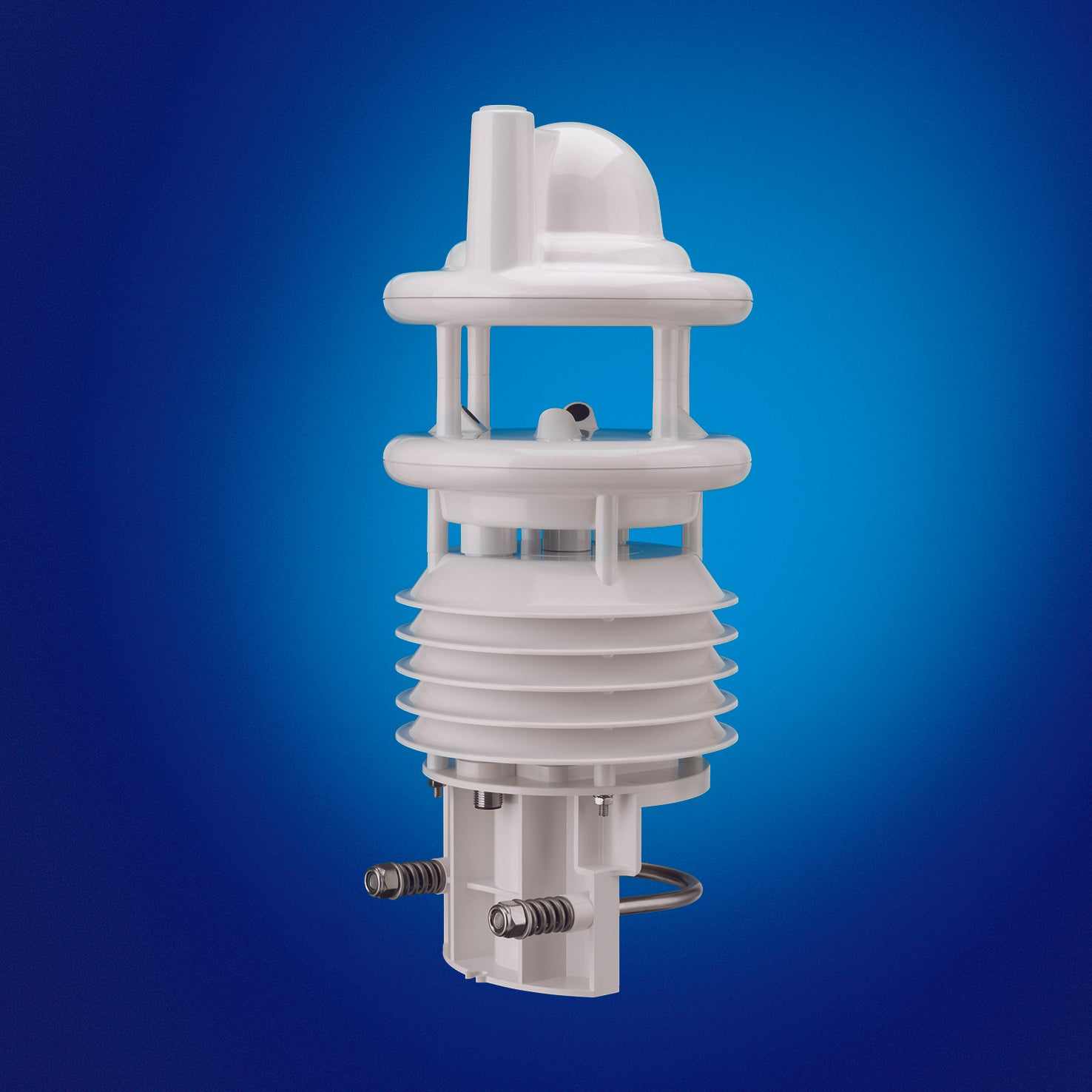

WS700 weather sensor for air temperature, humidity, air pressure, precipitation

Description:

All-in-one weather sensor for measuring temperature, relative humidity, precipitation intensity, precipitation type, precipitation amount, air pressure, wind direction, wind speed and radiation.

Additional description:

Relative humidity is measured using a capacitive sensor element, and air temperature is measured using a precise NTC sensor element. Precipitation is measured using a 24 GHz Doppler radar. The drop velocity of each individual drop (rain/snow) is measured. The measurement data output supports the following protocols: UMB-Binary, UMB-ASCII, SDI-12, and MODBUS. An external temperature sensor can be connected.

• . Measurement parameters: temperature, relative humidity, precipitation intensity, precipitation type, precipitation amount, air pressure, wind direction, wind speed, radiation
• Measurement technology: Ultrasonic/Wind, NTC/T, Capacitive/RF, MEMS Capacitive/Air Pressure, Thermopile/Radiation, Radar/Precipitation
• Product highlights: Compact all-in-one weather sensor, power saving mode, heating,
• ventilated radiation protection, maintenance-free measurement method, open communication protocol
• Interfaces: RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR, SDI-12
• Article number: 8380.U01
