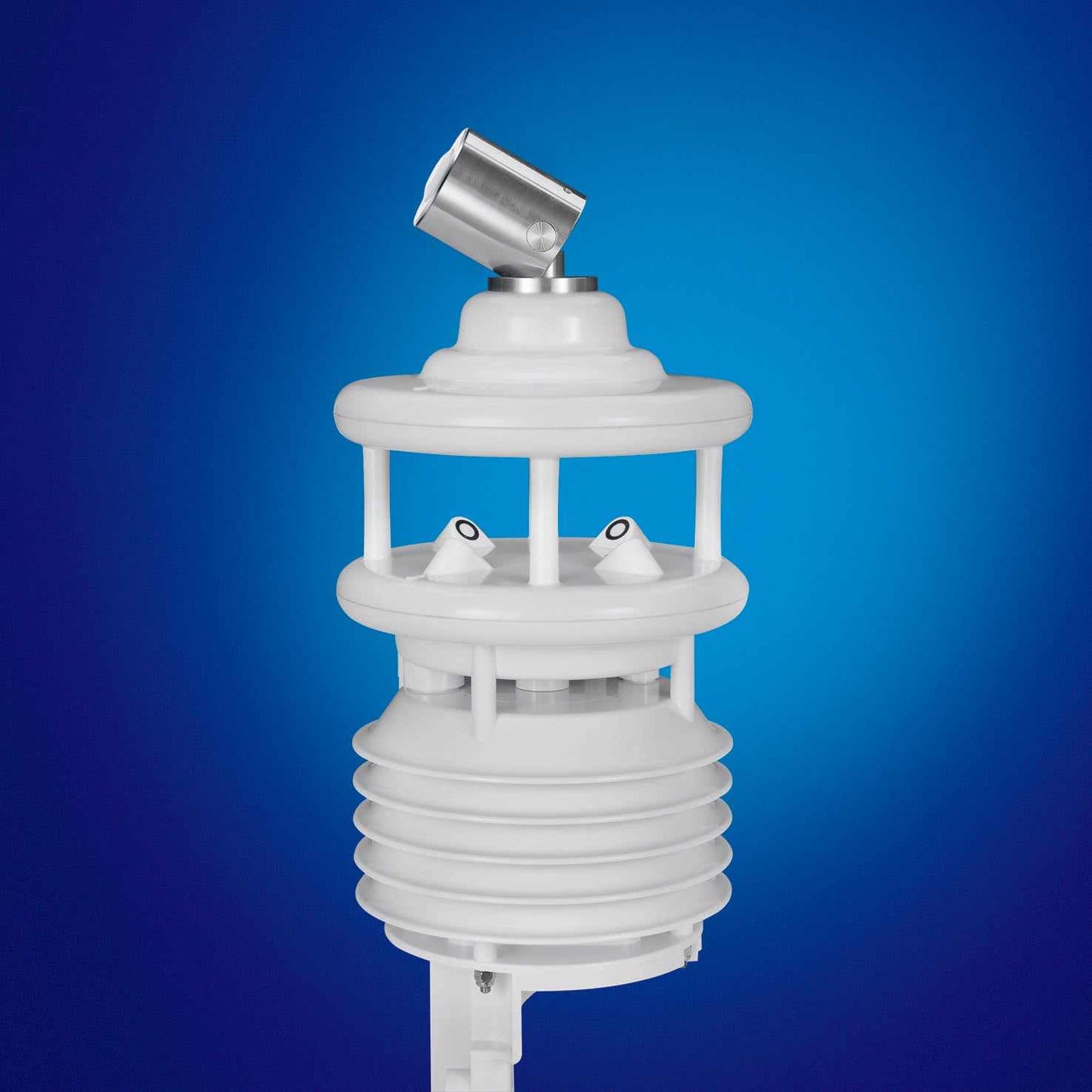

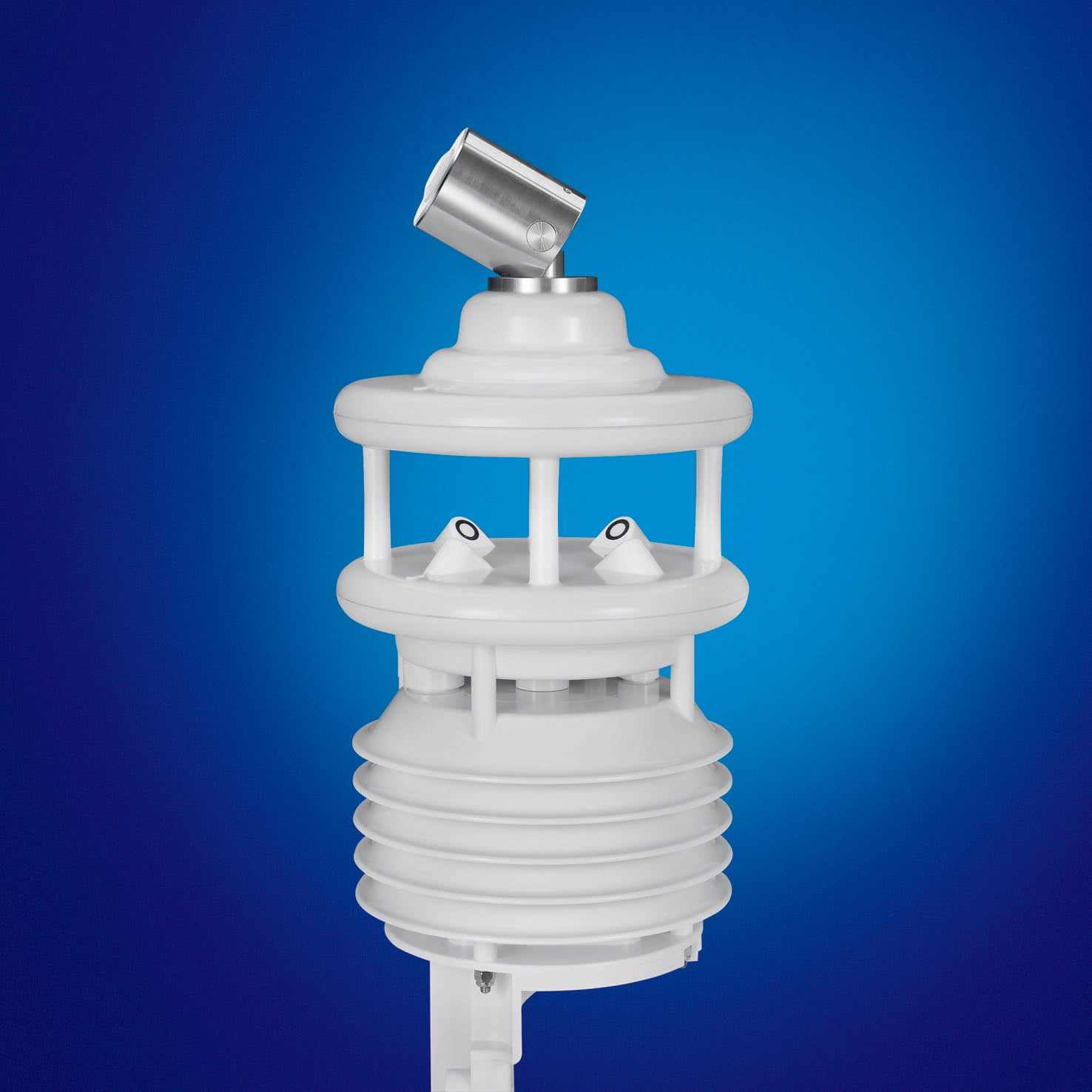

WS504 weather sensor for air temperature, humidity, radiation, wind and air pressure

WS504 compact all-in-one weather sensor for measuring air temperature, relative humidity, air pressure, wind direction, wind speed and radiation.

Description:

From the WS product family, the professional intelligent measuring transmitters with a digital interface for environmental applications. Relative humidity is measured using a capacitive sensor element, and air temperature is measured using a precise NTC measuring element. Wind is measured using ultrasonic sensors. The measured data output supports the following protocols: UMB-Binary, UMB-ASCII, SDI-12, and MODBUS. An external temperature or precipitation sensor can be connected.


Additional description:

Measurement parameters: temperature, relative humidity, air pressure, wind direction, wind speed, radiation
Measurement technology: Ultrasonic/Wind, NTC/T, Capacitive/RF, MEMS Capacitive/Air Pressure, Tiltable Pyranometer Air/Radiation
Product highlights: Compact all-in-one weather sensor, tiltable pyranometer, power-saving mode, heating, ventilated radiation protection, maintenance-free measurement method, open communication protocol
Interfaces: RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR, SDI-12
