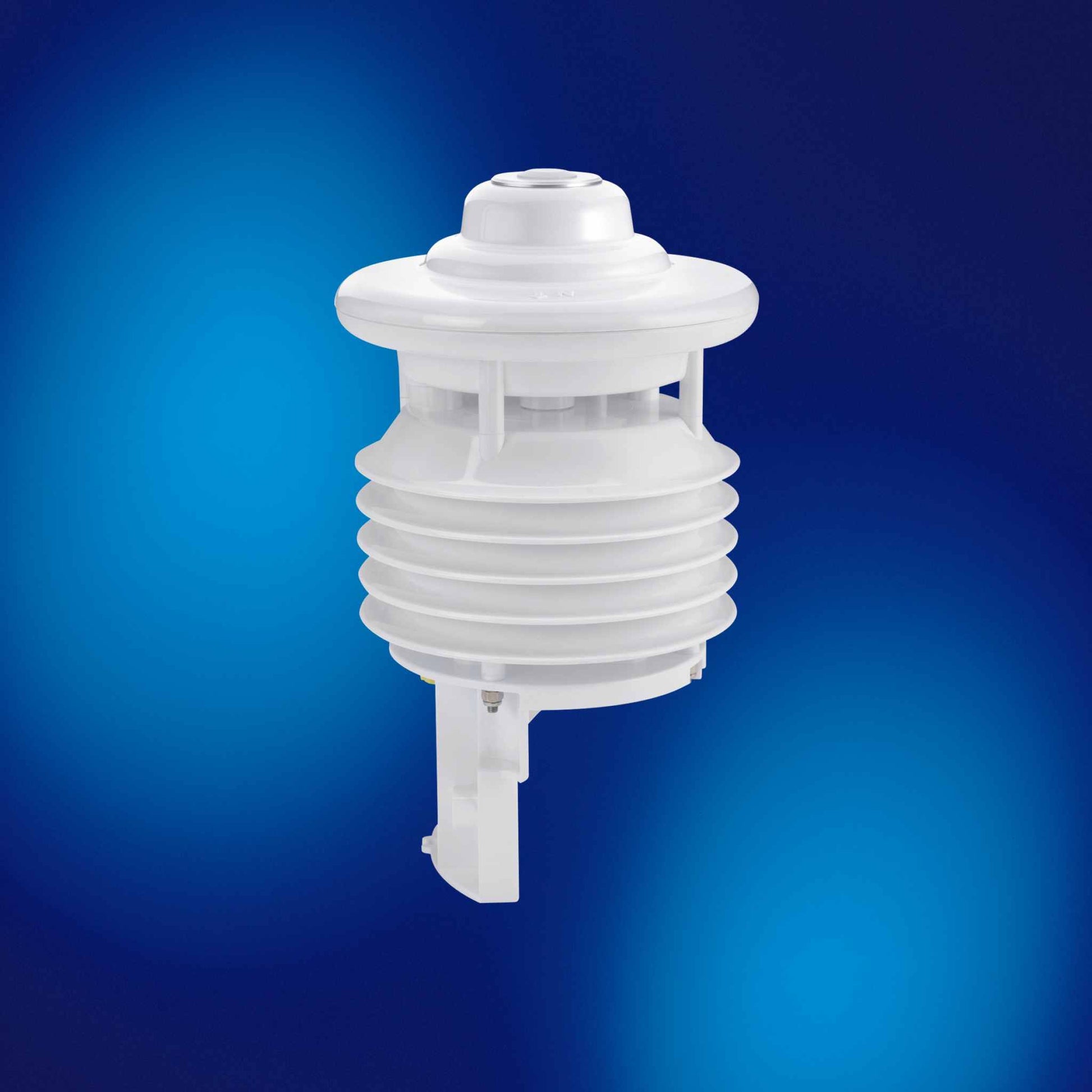

WS302 weather sensor for air temperature, humidity, radiation and air pressure

Description
Compact all-in-one weather sensor for measuring temperature, relative humidity, air pressure and radiation.

Additional description:
The WS302 from the WS product family of professional intelligent sensors with a digital interface for environmental applications. Relative humidity is measured using a capacitive sensor element, and air temperature is measured using a precise NTC measuring element. Measurement data output supports the following protocols: UMB Binary, UMB ASCII, SDI-12, and MODBUS. An external temperature or precipitation sensor can be connected.

Measurement parameters: temperature, relative humidity, air pressure, radiation
Measurement technology: NTC/T, capacitive/RF, MEMS capacitive/air pressure, Lufft pyranometer/radiation
Product highlights: Compact all-in-one weather sensor, power-saving mode, ventilated radiation protection, maintenance-free measurement method, open communication protocol
Interfaces: RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR, SDI-12
Article number: 8374.U10



Special features:

• Open communication protocol:
• UMB-ASCII
• UMB binary
• SDI-12
• MODBUS
• Analog outputs in combination with 8160.UDAC
