Wind measurement has high demands for the different application areas:
- for regional wind energy planning and supply
- for airports, ports and industrial facilities
- for climate measurement networks and early warning systems
- Site assessments and long-term studies
Thies wind measurement technology is available for all applications at the highest technical level: wind strength and direction, ultrasonic or analog measurements, long-term protocols and wind warning systems with state-of-the-art software and extensive accessories.
KEY FEATURES
OUTPUT: ANALOG 4-20mA=0-359<°

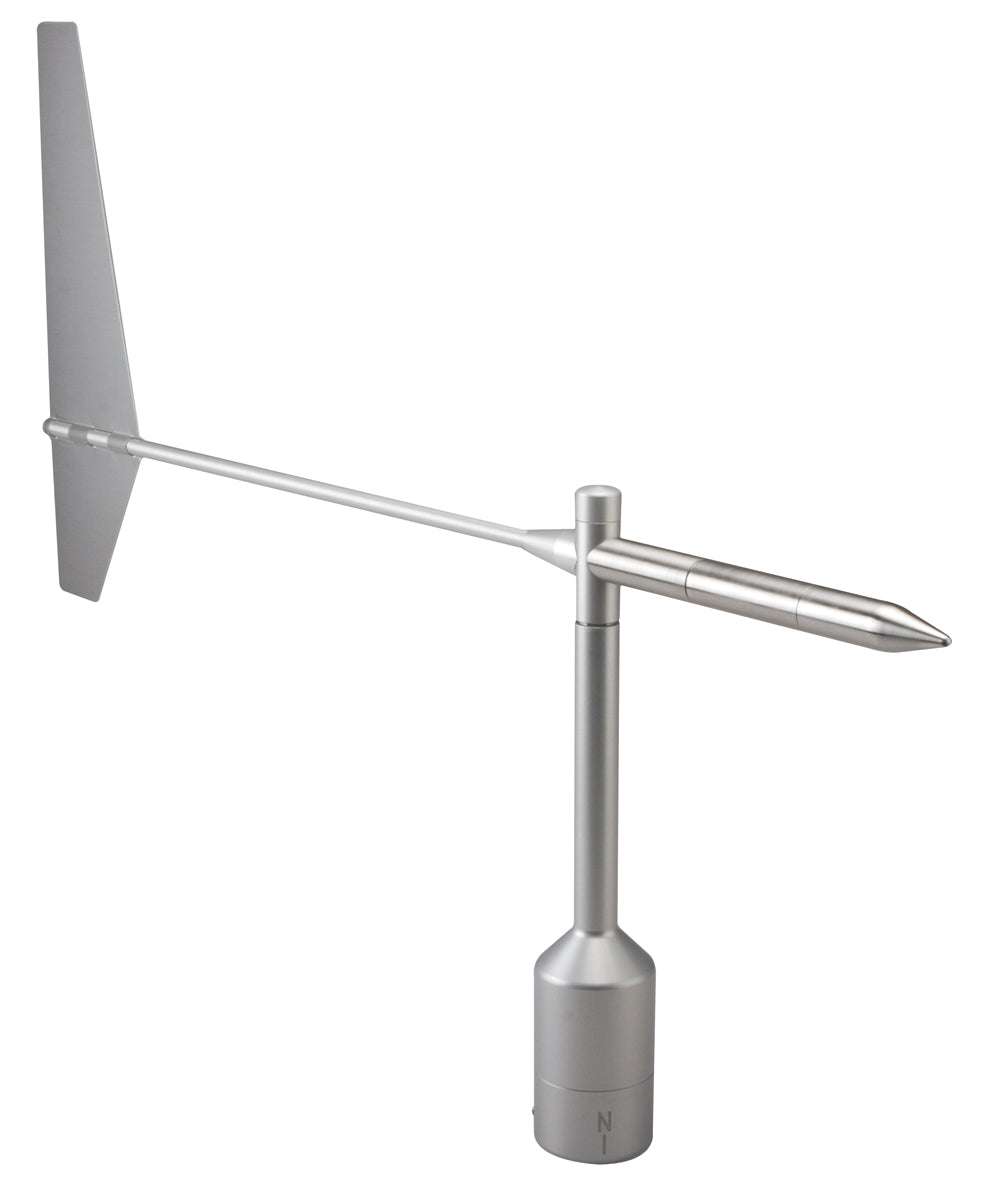

WIND DIRECTION VANE WITH OPTIMAL
FLOW PROPERTIES.
MAGNETIC ABSOLUTE ANGLE SCANNING.
ANALOG OUTPUT:4...20mA, 10 BIT
RESOLUTION: 0.35°
ACCURACY: 1°
START-UP: 0.5 m/s AT 10° DEFLECTION DISTANCE CONSTANT
< 1.8 m ACCORDING TO ASTM D53666-96
PERMISSIBLE AMBIENT CONDITIONS: -50...+ 80°C
SUPPLY:
15V - 24V DC ANALOG OUTPUT/15mA
8-pin BINDER-M connector
INCLUDING 8-pin BINDER-F MATING CONNECTOR
FASTENING: 1" e.g. DIN 2441
PROTECTION CLASS: IP 55 (DIN40050)
WEIGHT: approx. 0.7 KG
