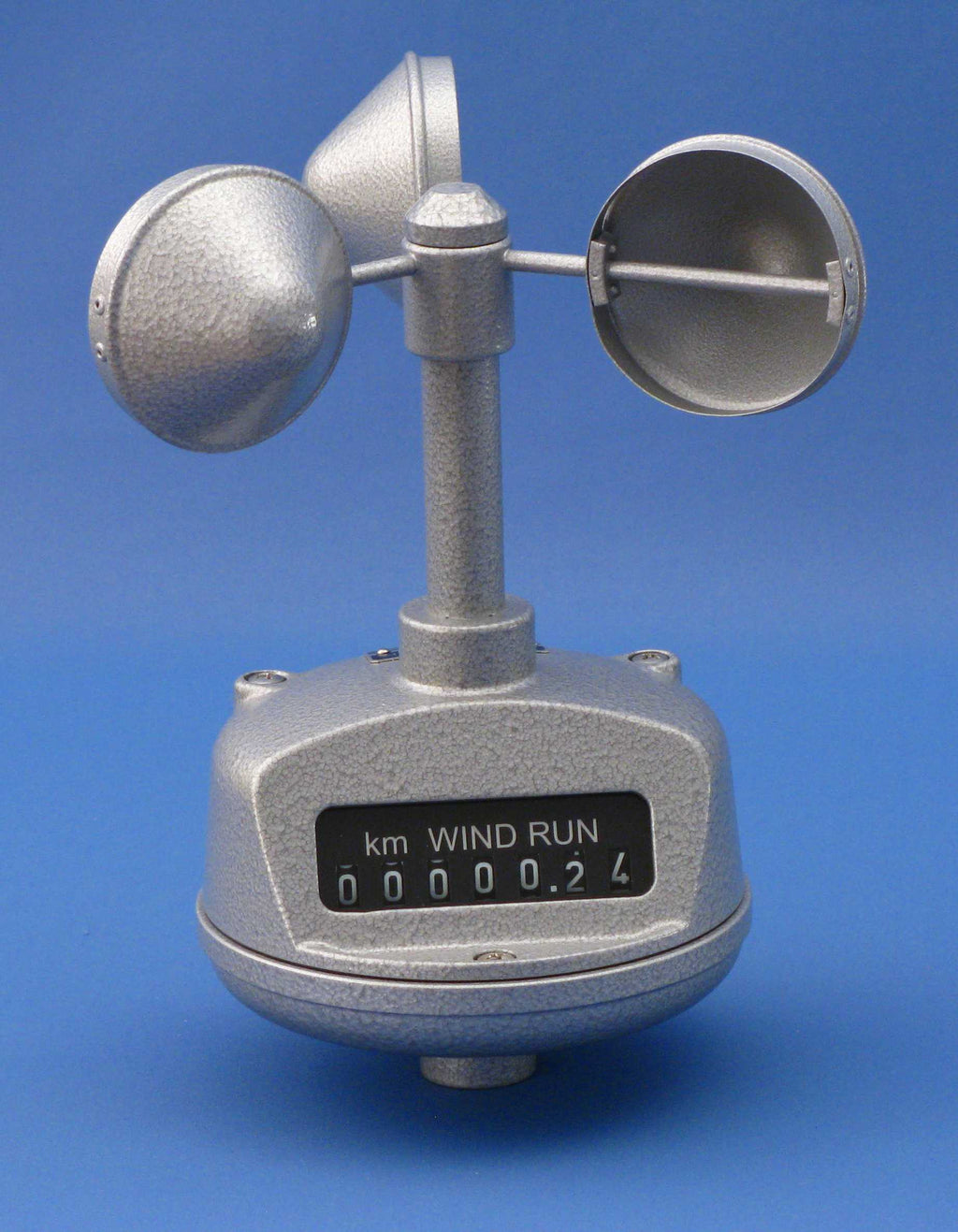

The one-man band... This cup anemometer/wind path meter operates completely autonomously and records the wind path through tamper-proof continuous recording. The 3-arm, anodized, and precision ball-bearing mounted aluminum cup anemometer enables maintenance-free year-round operation in most climates.
Anemometer or wind distance meter without auxiliary power
Large, easy-to-read, 6-digit counter
Simplest assembly and handling of the anemometer (wind distance meter)
Simple determination of the mean wind speed using the wind distance meter
Areas of application ofWind distance meterCup anemometers include, among others:
Site selection for wind energy use
Developing countries
Dune hike
remote places
Evaporation measuring systems
Standard Line
Cup anemometer with counter = wind distance meter | Identification No. 91ge
Measuring elements:
3-armed cup counter | mechanical roller counter | 8 mm digit height
Measuring ranges:
99999.99 km Wind path – the distance traveled by the wind in a specific time
Accuracy:
± 2% FS
Area of application:
Temperatures -35...+70°C, non-icing | Speeds 0...60 m/s
Dimensions and weight:
Cup star - Ø 220 mm | H 250 mm | 1/2" thread | Approx. 1.3 kg
Resolution:
10 m
Starting value:
0.5 m/s
Housing:
Aluminium | RAL 7038 (achatgrau) | IP 53
Included:
1 correction sheet
Factory test certificates or factory test reports are available upon request.
