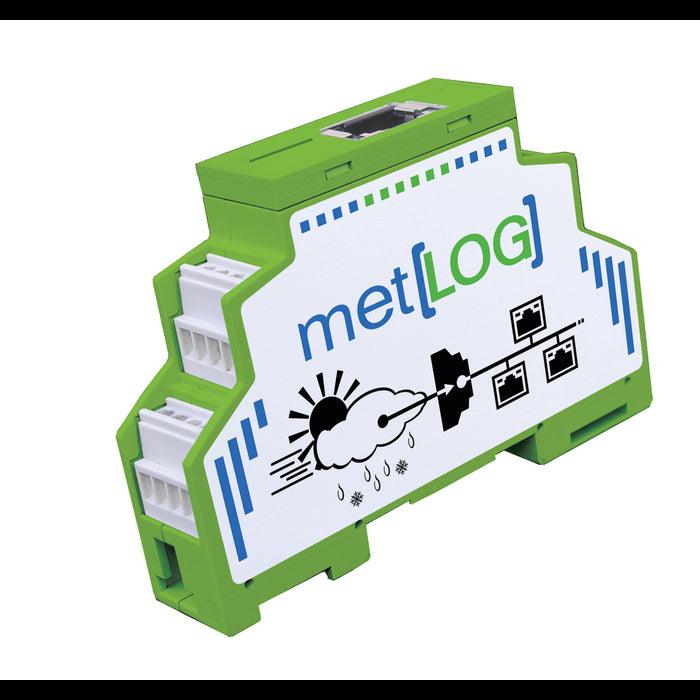

Data logger met[LOG]

The Metlog is a small 3.4-channel data logger with a serial interface and LAN (Ethernet) connection. For quick setup, met[LOG] features push-button auto-configuration for the LAMBRECHT meteo sensors: rain[e], EOLOS, ARCO, THP, and WENTO.

Alarm generation with hysteresis or window function; alarm output via 4 digital outputs; 8 logically linkable warning channels.

Graphic history display, trend display, graphic pointer instruments for wind speed and direction, status display for sunshine and rain, display for heat index/humidex and wind chill, sector display for 8x brightness, display of sunshine duration and rain duration for the day (available displays depend on the connected sensors).

Data storage on SD card in a ring buffer for over one year.

Overview of the function

· Connecting the serial LAMBRECHT sensors,

· b can connect up to 3 Talker sensors simultaneously (one per COM port),

· Connecting 4 analog/digital sensors,

O Temperature measurement via NTC temperature sensors,

od direct connection of sensors with open collector or relay output,

O Connecting sensors with voltage output.

· Connecting the LAMBRECHT precipitation sensors with pulse output,

o i integrated intensity-dependent linearization of precipitation,

· Saving data on SD card,

· v sectoral linking of wind direction and wind speed adjustable,

· Transferring the data to MeteoWare CS3.

· Visualization of instantaneous values ​​and trends via an integrated web page,

O Pointer instruments for wind direction and wind speed,

O History display for temperature, humidity, pressure, global radiation, precipitation,

O Trend display for temperature, humidity, pressure,

O Status display for sunshine and rain,

O Calculate and display the wind peak and maximum gust,

O Calculate and display the heat index/humidex or wind chill,

o g Calculate the dew point if necessary,

O Calculating absolute humidity,

O Altitude correction of air pressure (QFE),

O Calculate the air pressure at sea level (QNH or QFF),

O Calculation of sunshine duration throughout the day,

O Calculation of the duration of precipitation throughout the day.

· Output alarms via the 4 digital outputs,

o w Direction-dependent warnings possible,

O 8 warning channels that can be logically linked (AND/OR),

O Configuration of alarms via an integrated web page,

O Hysteresis function or window function,

O Logic test of the configured alarms,

O Functional test of the digital outputs at the push of a button (software).

· Configuration of the met[LOG] via an integrated web page,

O Data storage configuration,

O Configuration of the visualization,

o a Automatic setting of the time and date when connected to a time server.

· Autoconfiguration mode when connecting the serial LAMBRECHT sensors,

· v different languages ​​can be set (German / English),

· Connection of the rain[e],

O rain[e] Talker protocol,

O rain[e] SDI-12 to RS485.

· Easy firmware update via SD card.
